VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Santa Clarita, CA | Lightwell Windows Santa Clarita

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door with a minimalist frame and multi-point locking system. Santa Clarita homeowners choose it when they want a front door that feels architectural rather than decorative: thin sightlines, oversized glass, hardware that engages at three points instead of one. Lightwell Windows Santa Clarita is an authorized ViewLux installation partner, which means you get the factory product with a local crew that installs to AAMA standards and stands behind the work. Call (661) 430-5327 to schedule a free measurement.

Call (661) 430-5327

Product Overview – VLX 100 Swing / Entry Door

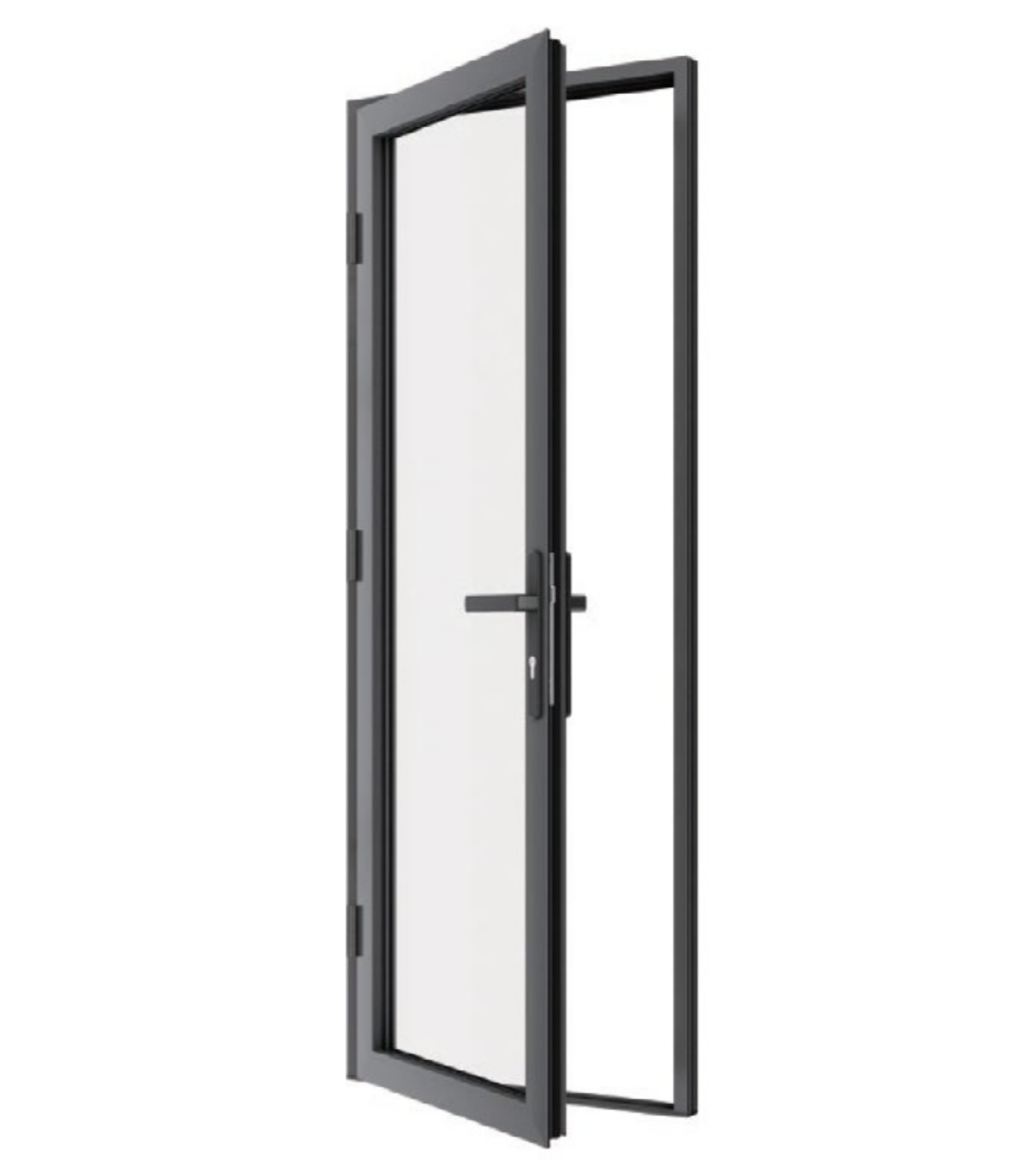

The VLX 100 is built around a simple idea: the door should frame the light, not fight it. The frame profile sits at 2.56 inches wide, which lets the glass do most of the visual work. That narrow profile works well on the modern ranch and Spanish-contemporary homes common in Valencia, Stevenson Ranch, and Saugus, but it also reads clean against a traditional stucco facade. What makes this an entry door rather than a patio door is the hardware. The multi-point locking system engages at three points along the frame when you lift the handle, which pulls the slab tight against the weather seal. You get a door that closes like a vault but looks nearly frameless from the curb.

Material choice matters in Southern California. The VLX 100 is extruded aluminum with a 0.098-inch wall thickness. Aluminum doesn’t warp in dry heat the way wood doors do, and it won’t swell or rot if a Santa Ana-driven rainstorm pushes water against the threshold. The finish is baked on, not painted, so it holds up to years of direct afternoon sun without chalking or fading. For a front entry that faces west in Castaic or Newhall, that’s not a nice-to-have; it’s the difference between a door that looks new at five years and one that needs refinishing at two. Lightwell Windows Santa Clarita has installed this series across Santa Clarita, and the feedback from homeowners is consistent: the door feels substantial, the operation is smooth, and the sightline is genuinely slim.

Technical Specifications

These numbers come directly from ViewLux’s engineering documentation for the VLX 100 series. We’re putting them here in plain terms because you should know exactly what you’re buying before a single measurement is taken.

• Frame profile width: 2.56 inches, designed for a minimalist reveal around the glass.
• Wall thickness: 0.098-inch extruded aluminum, heavy enough for a secure structural feel.
• Maximum slab span: Up to 48 inches wide, so you can run a true single-panel entry on most front door openings.
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated. Mix and match based on privacy and sun exposure.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or none, depending on how much airflow you want at the entry.
• Thermal performance: Thermal break technology, NFRC-rated for energy performance.
• Installation compliance: AAMA 2400/2410 standard, AAMA 812 low-expansion foam sealant on all perimeter joints.

Performance Features

Every performance claim below is grounded in the standards that ViewLux aluminum systems are designed and tested to meet. Lightwell Windows Santa Clarita installs to the same standards, which is what keeps the warranty intact.

Thermal Efficiency

Aluminum conducts temperature, so the VLX 100 uses a thermal break to separate the interior and exterior frame halves. That break slows heat transfer, which matters on a north-facing entry in Canyon Country that gets zero afternoon sun, or a south-facing door in Valencia that bakes all afternoon. NFRC-rated energy performance means you can compare this door against any other on the market with real numbers, not sales language.

Acoustic Performance

If you live near the 14, the 5, or Magic Mountain Parkway, road noise is part of daily life. A well-sealed swing door with laminated glass cuts down on that low-frequency hum. The multi-point lock pulls the slab tight against the weatherstrip, which does as much for sound as the glass itself. Laminated glass adds another layer of sound attenuation for homes that need it most.

Airtightness & Weather Seal

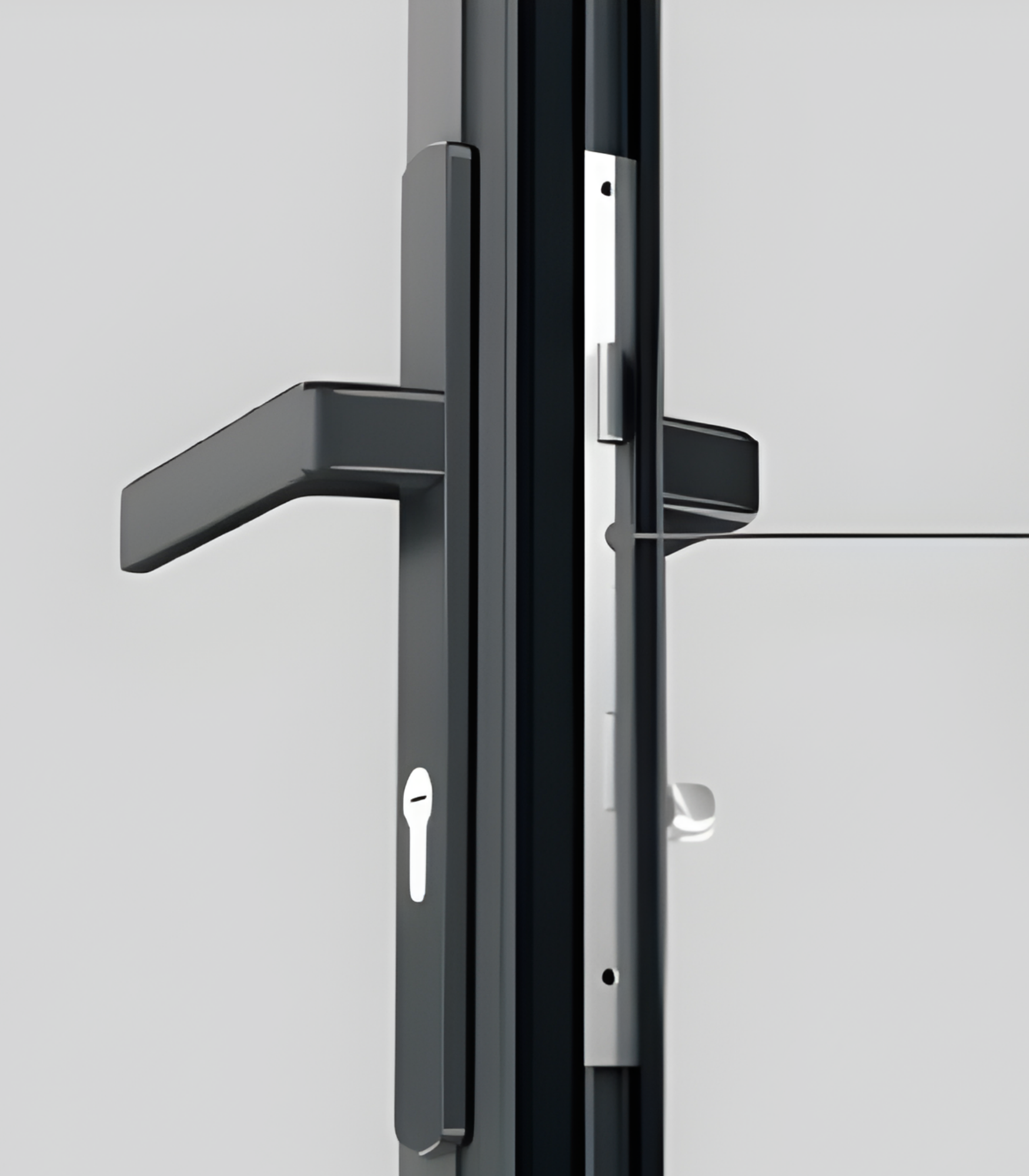

The three-point locking system isn’t just about security. When the handle lifts, the slab compresses against the perimeter gasket at the top, bottom, and latch side. That compression eliminates the air leaks you feel around a standard single-bolt door when the wind kicks up. Less air movement means less dust in the entryway and more stable indoor temperatures across all four seasons in Santa Clarita.

Waterproofing

Heavy winter rain in Santa Clarita often comes at a steep angle, pushed by wind. The VLX 100’s sill design and perimeter seal are engineered to shed water outward, not into the threshold. During installation, we apply AAMA 812 low-expansion foam sealant at every perimeter joint. That foam fills the gap between the rough opening and the frame, so water never has a hidden path into the wall cavity.

Wind Resistance

Santa Clarita sits in a wind corridor. When gusts hit 40 or 50 miles per hour, a front door takes real structural load. The VLX 100 is wind-load rated for our local climate requirements, and the 0.098-inch wall thickness means the slab resists deflection better than thinner extruded frames. A door that flexes in the wind will eventually sag or lose its seal. This one doesn’t.

Security & Hardware

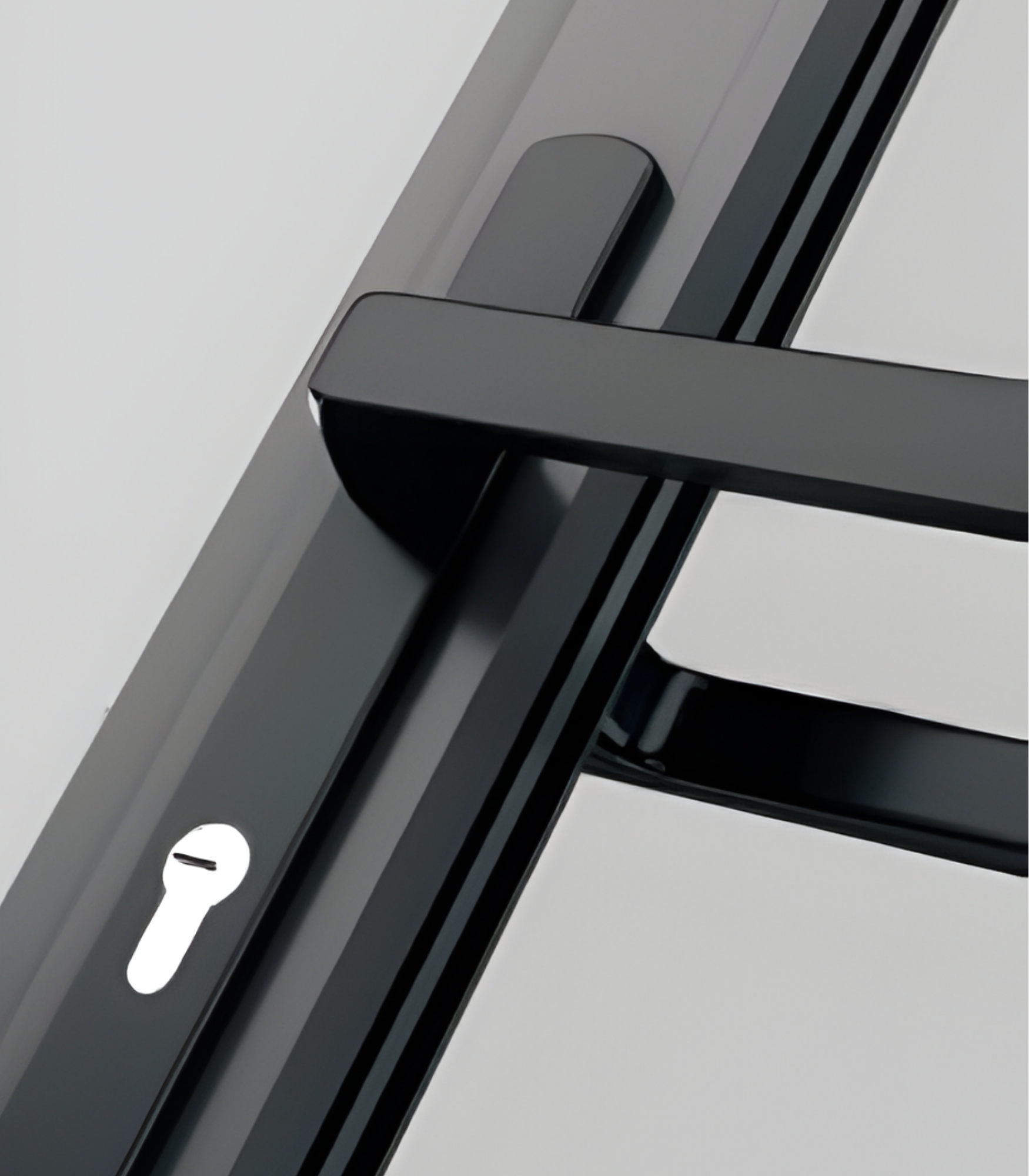

The multi-point lock engages at three points of the frame, not just one. That spreads force across the full height of the slab, making the door dramatically harder to kick or pry. For homeowners who want additional impact resistance, laminated glass is available. It holds together even if struck. We recommend it for anyone using the VLX 100 as the primary front entry on a street-facing home in Santa Clarita.

Color & Glass Options

The VLX 100 comes in six finishes, and each one changes the personality of the entry. Premium Black is the most requested finish in Santa Clarita right now. It reads sharp against white or light stucco and pairs well with black window frames, which many newer homes in River Village and Five Knolls already have. Pure White is a quiet choice for traditional facades where the door shouldn’t be the loudest thing on the street. Anodized Silver has an industrial, almost architectural feel that works on mid-century or minimalist homes. Bronze reads warm and grounded, a good match for Spanish-style homes with tile roofs and wood accents. Champagne is the wildcard: it catches light differently through the day and gives a soft metallic warmth. Teak Wood gives you the look of a stained wood door with the zero-maintenance reality of aluminum.

Glass selection depends on privacy and sun exposure. Clear glass maximizes light and sightlines, best when you have a covered entry or a front porch that blocks direct sun. Frosted and obscure glass give you privacy without curtains, useful for doors that face the street directly. Low-E cuts solar heat gain, which matters on west- and south-facing entries in Saugus and Tesoro del Valle. Tempered glass is safety-rated and required in many door applications. Laminated adds impact resistance and sound reduction. Most Santa Clarita homeowners combine Low-E with either tempered or laminated for the best balance of comfort and safety.

Installation by Lightwell Windows Santa Clarita in Santa Clarita

A door is only as good as its installation. The VLX 100 is engineered to tight tolerances, and a sloppy install negates everything: the thermal break, the weather seal, the smooth operation, and worst of all, the warranty. ViewLux warranties cover manufacturing defects, not installation errors. If a door leaks because the rough opening wasn’t flashed correctly, or binds because the frame was set out of square, that’s not a factory problem. That’s an installer problem. Which is why it matters that Lightwell Windows Santa Clarita is an authorized installation partner with a documented process.

Our install starts with a pre-install inspection of the rough opening. We check that the framing is plumb, level, and square before the door ever comes off the truck. If there’s a problem in the opening, we fix it before the install, not after. Then we set the frame level, plumb, and square, shimming at the correct points to keep the slab from sagging over time. We seal the full perimeter with AAMA 812 low-expansion foam sealant, following AAMA 2400/2410 installation standards for window and door systems. Low-expansion foam matters: the wrong foam can bow the frame and prevent the door from closing correctly. After the slab is hung and the hardware is adjusted, we run a water test on the sill and threshold, then clean the full work area. You’re left with a door that opens with one finger and seals tight with one lift of the handle.

Santa Clarita’s climate adds its own demands. Dry heat, dusty winds, occasional heavy rain, and wide temperature swings from morning to night. A properly installed aluminum door handles all of it. An improperly installed one will bind, leak, or lose its finish performance within a couple of seasons. When we install the VLX 100, we’re building for the long term, because we’re the ones you’ll call if something’s ever wrong.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Santa Clarita

If you’re considering the VLX 100 Swing / Entry Door for your home in Santa Clarita, the next step is a free on-site measurement. We’ll confirm your rough opening dimensions, talk through finish and glass options in person, and give you a written line-item quote with no surprises. Call (661) 430-5327 to schedule yours today.

Written by the team at Lightwell Windows Santa Clarita, serving Santa Clarita, Valencia, Saugus, Canyon Country, Newhall, Castaic, and Stevenson Ranch since our founding as a ViewLux authorized installation partner.
