Get your free estimateVLX 120 Glass Railing System in Santa Clarita, CA | Lightwell Windows Santa Clarita
The VLX 120 Glass Railing System is a premium aluminum-framed glass railing built for homeowners in Santa Clarita who want clean sightlines without sacrificing structural integrity. It pairs frameless tempered glass panels with a slim 2.20″ aluminum profile and stainless steel hardware, so the view stays open while the railing holds up to daily use, sun exposure, and the dry heat of our valley summers. Lightwell Windows Santa Clarita is an authorized ViewLux installation partner, which means we sell, measure, and install this system under warranty-safe conditions. If you’re pricing a deck, balcony, stair, or pool enclosure, call us at (661) 430-5327 for a written quote.
Product Overview – VLX 120 Glass Railing System

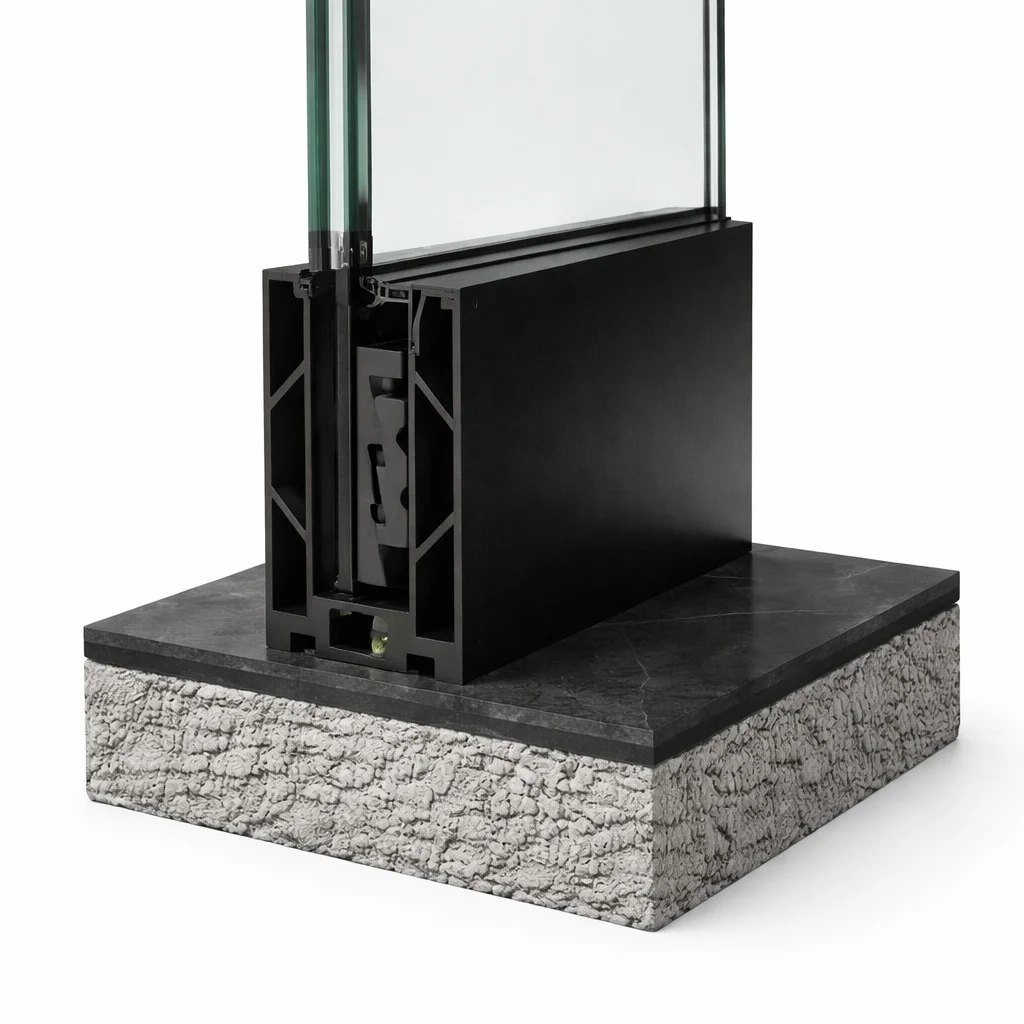

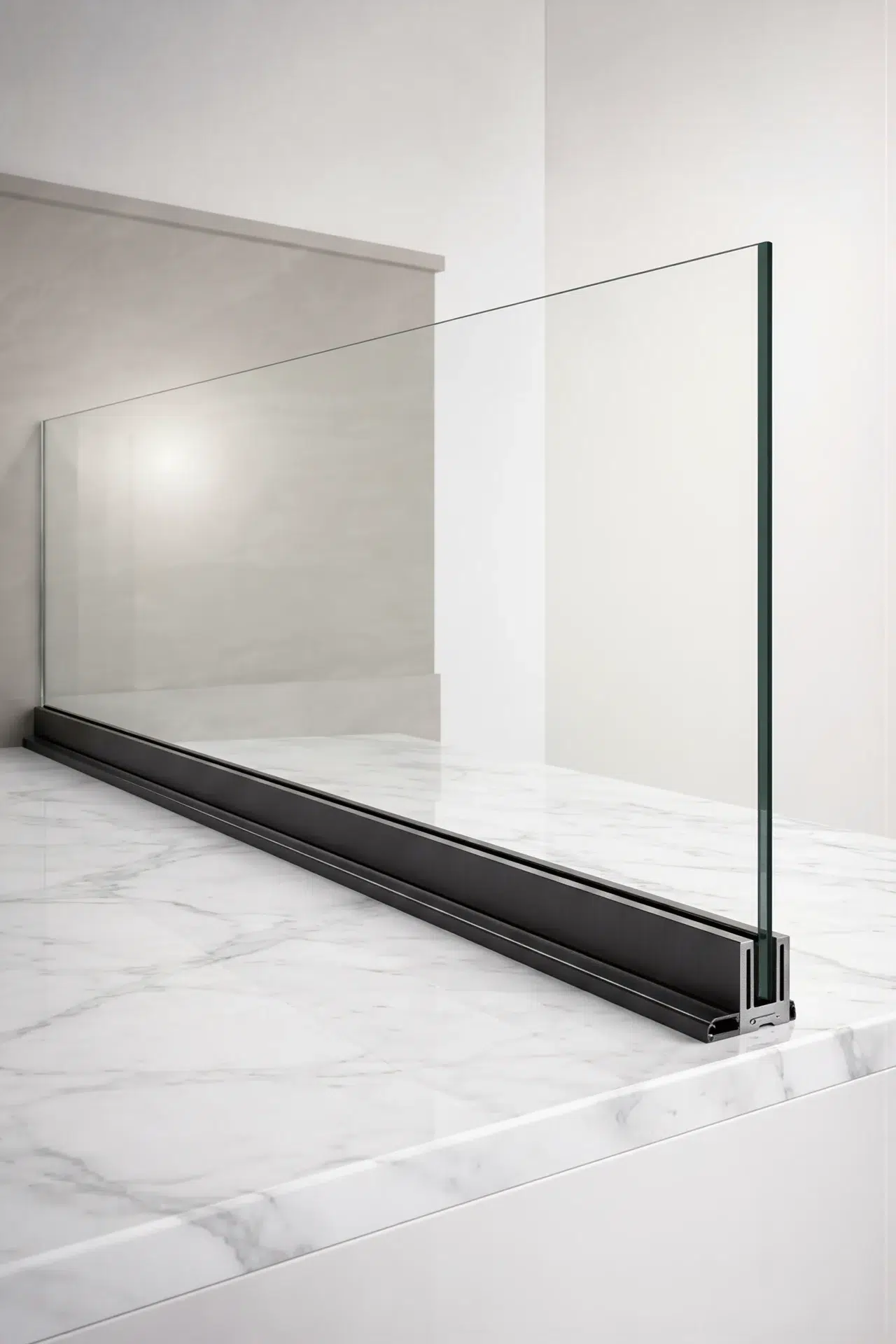

The VLX 120 exists for one reason: to give you an unobstructed view. Traditional railings with pickets or wood balusters block sightlines. This system uses frameless tempered glass panels held in a minimal aluminum base channel, so you see through the railing, not around it. The panels are set into a 2.20-inch-wide profile, which is slim enough to disappear visually but deep enough to hold the glass securely against wind load and impact.
What separates the VLX 120 from budget glass railings is the hardware. Every connection point uses stainless steel components, including the panel clamps, base shoe fasteners, and any corner brackets. In Santa Clarita, where morning dew and occasional rain can sit on metal surfaces, stainless hardware prevents the rust streaks and pitting you see on cheaper systems within a few years.

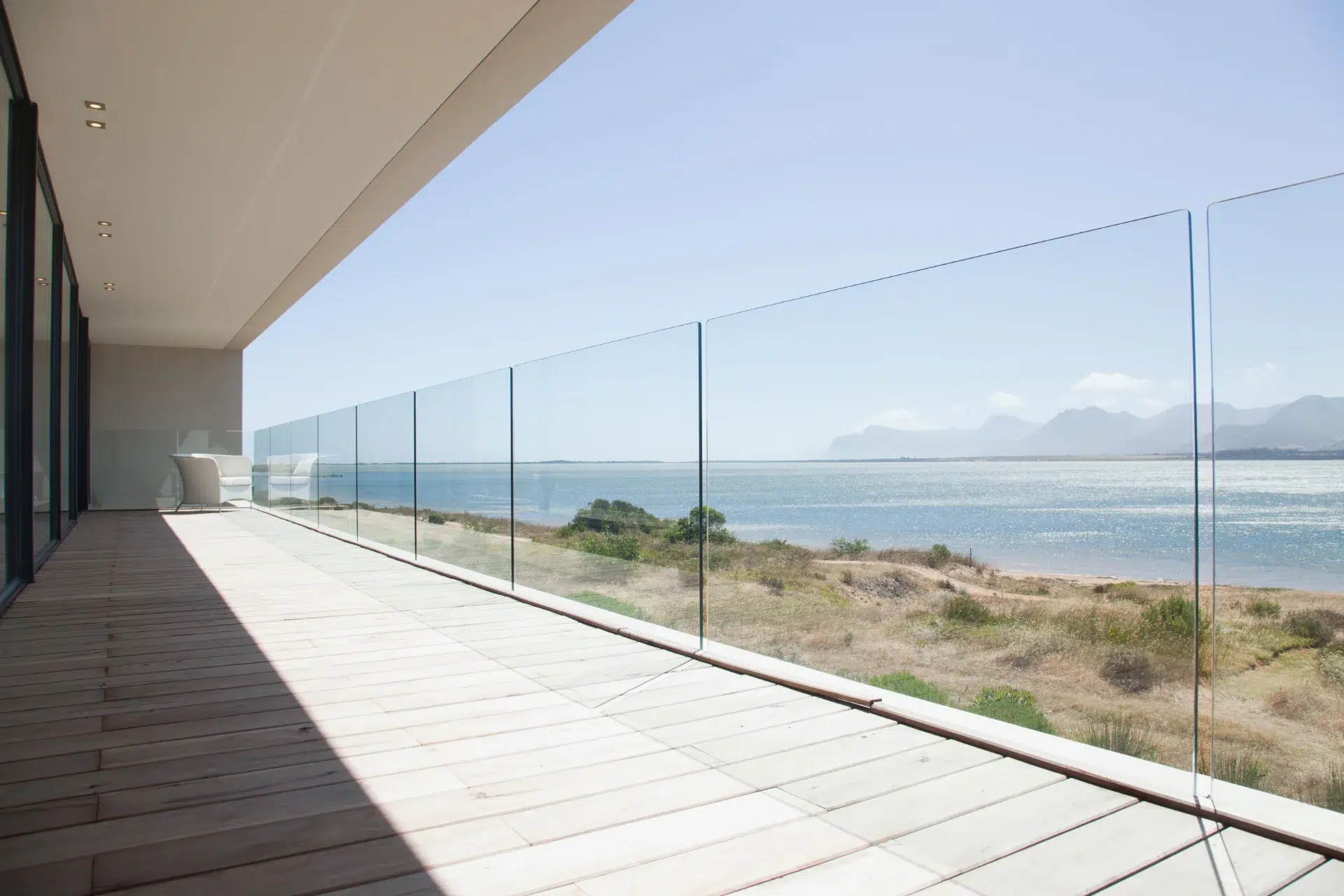

This system works for both interior and exterior applications. We’ve installed it on second-story decks in Valencia, around pool areas in Saugus, on stairwells inside modern homes in Newhall, and along balcony edges in Stevenson Ranch. The aluminum frame is powder-coated, so it resists the UV fading and chalking that our Santa Clarita sun inflicts on lesser finishes. Buyers choose this series when they want the look of a frameless glass railing but need the structural predictability of an engineered aluminum frame.
Styles & brands we work with
Technical Specifications
- Profile width: 2.20 inches
- Wall thickness: 0.079 inches
- Maximum span: Custom panel sizes available (no fixed stock lengths)
- Glass options: Clear Tempered, Frosted Tempered, Low-Iron Tempered, Laminated Safety
- Finish options: Premium Black, Brushed Stainless, Anodized Silver, Bronze, Champagne, Pure White
- Hardware: Stainless steel clamps, fasteners, and brackets
- Mounting: Face-mount or top-mount base shoe, depending on deck or stair configuration
- Application: Interior and exterior, residential and light commercial
One note on panel sizing: because the VLX 120 is built to custom spans, we measure every opening on-site before ordering. That means no filler panels, no awkward gaps, and no field-cutting glass on your driveway. The glass arrives from ViewLux cut to the exact dimensions we record during the pre-install site visit.
Performance Features
Thermal Efficiency – The aluminum base channel is engineered with a thermal break that interrupts conductive heat transfer. On a Santa Clarita afternoon when the deck surface hits 130 degrees, the railing frame stays cooler to the touch and does not radiate heat back onto the adjacent living space.
Acoustic Performance – The glass panels act as a partial sound barrier along elevated decks and balconies. Properties near Highway 14, the 5 freeway, or busy streets like Bouquet Canyon Road in Saugus notice the difference once the VLX 120 goes in, particularly with laminated glass selected.
Airtightness & Weather Seal – Every perimeter joint is sealed with AAMA 812 low-expansion foam sealant. This is not a cosmetic bead of caulk. It’s a tested sealant spec that prevents air movement, dust infiltration, and moisture from migrating behind the base shoe and into the substrate.
Waterproofing – The base shoe is installed with a continuous seal at the mounting surface, and the system is detailed to shed water away from the glass channel. Pool decks and second-story balconies in Santa Clarita take direct afternoon sun plus occasional hard rain; the VLX 120 drains properly instead of trapping water.
Wind Resistance – Glass panels on elevated decks catch wind. The VLX 120 is wind-load rated and installed to meet the pressures we see in Santa Clarita’s high-wind corridors like Sand Canyon and areas near the Santa Clarita Valley wind zones. We confirm the railing height and panel sizing against the wind exposure on your specific lot.
Security & Hardware – All clamping points, corner brackets, and fasteners are stainless steel. That means no corrosion at the points that hold the glass. The laminated safety glass option uses an interlayer that holds the panel together even under heavy impact, which matters on multi-story balconies and any railing near stairs.
See the difference
Before
After
Before
After
Before
AfterColor & Glass Options
The finish you pick changes the whole character of the railing. Premium Black and Brushed Stainless are our two most-specified finishes in Santa Clarita. Black frames disappear against dark exteriors and modern homes in Valencia and Newhall. Brushed Stainless reads as an architectural detail, which is why we see it on contemporary remodels in Stevenson Ranch.
Anodized Silver is the closest match to raw aluminum, and it’s the option we recommend for coastal-style homes that want a bright, neutral frame. Bronze suits the Mediterranean and Spanish-influenced homes common around Saugus and Canyon Country. Champagne and Pure White are less common but fill a real niche: Champagne for warm transitional interiors, and Pure White for traditional homes, Southern California pool areas, and anywhere the railing should read as part of the trim.
On the glass side: Clear Tempered is the standard and least expensive. Low-Iron Tempered removes the faint green tint standard glass carries, which matters when you’re looking through the panel toward the hills around Santa Clarita. Frosted Tempered is the choice for privacy on street-facing balconies or interior stairwells. Laminated Safety is the strongest option and is what we specify for pool enclosures, second-story decks, and any elevation change where a broken panel would be a genuine hazard.
Installation by Lightwell Windows Santa Clarita in Santa Clarita
The gap between a good glass railing and a bad one is almost always the install. A railing system can have perfect engineering specs, and it will still fail if the base shoe is installed out of level, the anchors are placed wrong, or the perimeter seal is skipped. That is why we do not sub out railing installation and why we never sell this system as a supply-only package.
Every VLX 120 installation in Santa Clarita starts with a pre-install inspection. We measure the actual mounting surface, check the substrate depth and condition, and identify any anchoring conflicts before the glass is ordered. When the system arrives, we set every section level, plumb, and square. That is not a slogan; it is the only way the glass panels seat correctly in the channel without stress points.
We install to AAMA 2400 and AAMA 2410 standards, which govern exterior aluminum installation and field glazing practices. The perimeter joints receive AAMA 812 low-expansion foam sealant, applied continuously so there are no gaps for water, dust, or movement. After the railing is set, we run a water test on exterior mounts and walk the entire railing with you before we call the job done.
Santa Clarita adds a few considerations. Our summers bring sustained UV exposure and heat cycling that expands and contracts aluminum. Our winter rains, while not heavy by Northwest standards, arrive fast and run off hard. And deck surfaces in many Valencia and Saugus homes are coated with a waterproof membrane that must not be compromised by sloppy anchoring. We account for all of this in the install details.
One more thing worth saying plainly: an improperly installed railing voids the manufacturer warranty. ViewLux warranties are written for systems installed by authorized installers using their specified methods. When we install your VLX 120, your warranty stays intact.
Frequently Asked Questions – VLX 120 Glass Railing System
Lead time for the VLX 120 typically runs three to five weeks from final measurement to delivery, since every panel is cut to custom size and the finish is applied per order. Custom finishes like Champagne or Pure White can add a week. We give you a written schedule when you place the order, and we do not start the install until every component is on-site. Call (661) 430-5327 for a current lead time on your project.
No. Energy tax credits apply to qualifying windows, doors, and skylights that meet specific NFRC ratings, not to railing systems. The thermal break in the VLX 120 frame improves performance, but a railing is not a fenestration product and does not carry an NFRC label. If you’re combining the railing with replacement windows or doors in Santa Clarita, we can advise you on which of those products do carry tax-credit eligibility. Call us at (661) 430-5327 and we’ll walk you through it.
The VLX 120 is covered by the ViewLux manufacturer warranty on the aluminum frame, glass panels, and stainless hardware, with coverage terms based on the specific components. The warranty applies when the system is installed by an authorized partner like Lightwell Windows Santa Clarita, using the manufacturer’s specified installation methods. We also back our installation workmanship in writing. Call (661) 430-5327 and we can review the warranty document details for your specific configuration before you commit.
Yes, and that is the whole point of this system. There are no fixed stock panel lengths in the VLX 120 line. Every glass panel is cut for your actual opening, and the aluminum base shoe is cut to match. We measure on-site, order to those dimensions, and install without filler panels. This matters in Santa Clarita, where deck lengths, stair runs, and balcony returns vary widely between homes in Valencia, Saugus, and Newhall. Call (661) 430-5327 to schedule a measurement.
Maintenance is minimal. Wash the glass with standard glass cleaner and a microfiber cloth, and wipe down the powder-coated aluminum frame with mild soap and water two or three times a year. Avoid abrasive pads and harsh solvents on the finish. If you choose laminated glass, do not let sprinkler overspray dry on the panel edges, since mineral deposits in Santa Clarita’s hard water can cloud the edges over time. A quick rinse after the sprinklers run is enough. For specific product care questions, call us at (661) 430-5327.
Get a Quote – VLX 120 Glass Railing System in Santa Clarita
The fastest way to get a real number for your railing project is to call us. We’ll ask a few questions about the location, the linear footage, and the look you’re after, then schedule a free on-site measurement in Santa Clarita, Valencia, Saugus, Newhall, Canyon Country, or Stevenson Ranch. Call (661) 430-5327 today and we’ll put together a written, line-item quote with no surprises.
Written by the team at Lightwell Windows Santa Clarita, serving Santa Clarita, CA since 2014.
